Sheet-Metal Screws are originally designed for metal to metal, metal to wood and furniture works, but can be used for a number of other applications too. They can be used with plastics, rubber, or plywood. The screws are classified based on Head of the screw & screw drive Type. The following are the heading shapes in our product range.

Material Grade : SAE 1018
The following coatings are also available; Zinc/ Nickel/ Antique/ Black

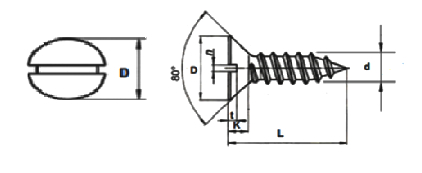

SLOTTED CSK HEAD - SELF TAPPING SCREWS AB TYPE


SIZE #(mm)		4(2.9)	5(3.3)	6(3.5)	8(4.2)	10(4.8)
HEAD DIA(D)	Min	5.20	5.80	6.30	7.70	9.00
HEAD DIA(D)	Max	5.50	6.20	6.60	8.10	9.40
HEAD HEIGHT(k)	Min	0.97	1.09	1.22	1.47	1.73
HEAD HEIGHT(k)	Max	1.19	1.35	1.50	1.78	2.06
SLOT DEPTH(t)	Min	1.24	1.40	1.52	1.83	2.13
SLOT DEPTH(t)	Max	1.50	1.70	1.88	2.24	2.62
SLOT WIDTH(n)	Min	0.79	0.89	0.99	1.14	1.27
SLOT WIDTH(n)	Max	0.99	1.09	1.22	1.37	1.52
THREAD DIA(d)	Min	2.79	3.20	3.43	4.09	4.65
THREAD DIA(d)	Max	2.90	3.30	3.53	4.22	4.80

All dimensions are in mm.
